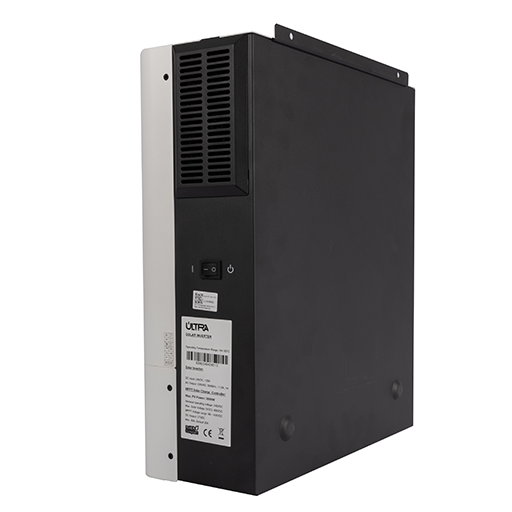

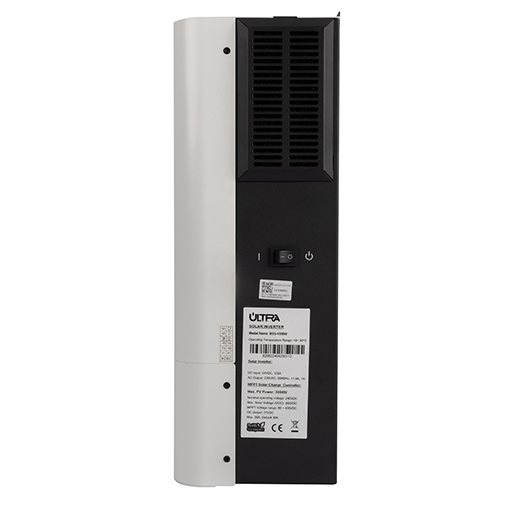

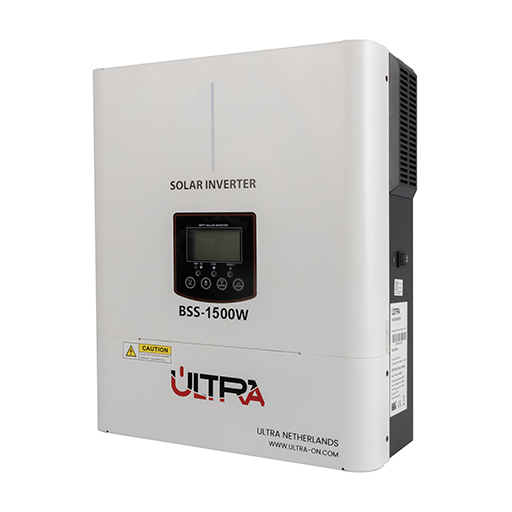

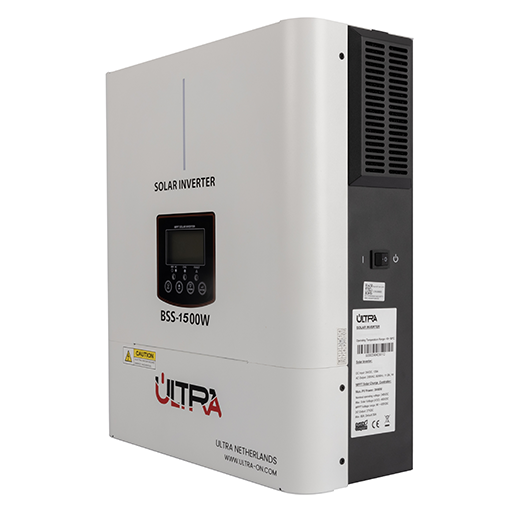

ULTRA Hybrid Inverter — BSS-1500W
BSS Series | On&Off Grid MPPT | ISO 9001 | CE
Basic Specifications
|
Specification |
Value |
|
Rated Power |
1500W |
|
Max Solar Panel Power |
2000W |
|
Max Open Circuit Voltage (PV) |
500VDC |
|
MPPT Range |
60 ~ 430VDC |
|
Number of MPPT Trackers |
1 |
|
Output Voltage (AC) |
220 / 230 / 240 VAC |
|
Waveform |
Pure Sine Wave |
|
Conversion Efficiency |
98% |
|
Nominal Battery Voltage |
12VDC |
|
Max Solar Charging Current |
80A |
|
Max AC Charging Current |
80A |
|
Grid Voltage Range |
90 ~ 280 VAC |
|
Frequency |
50 / 60 Hz (Auto) |
|
Communication Ports |
USB / RS232 / RS485 / WIFI |
|
Operating Temperature |
-10°C ~ +50°C |
|
Humidity |
0 ~ 90% RH |
|
Dimensions |
128 × 300 × 363 mm |
|
Weight |
6.9 kg |
Operating Modes
Grid-tie — Off-grid — Grid-tie with Backup
Compatible With
AGM / Sealed / Gel / Flooded / Lithium — and almost all battery types
For inquiries about compatibility or detailed specifications — contact our team.
